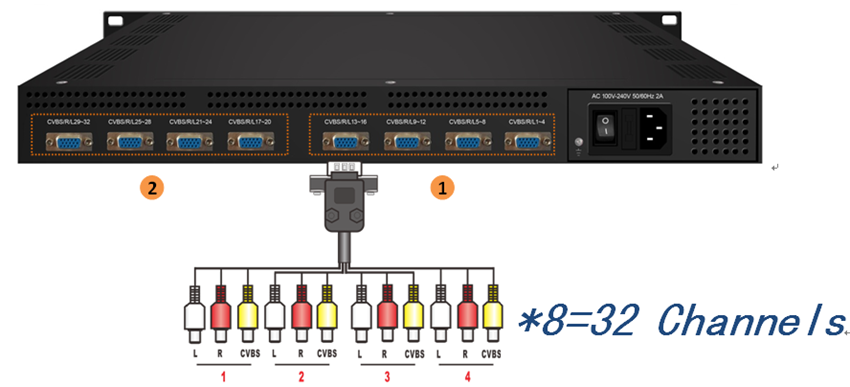

Input:16 CVBS or 32 CVBS, 1 DVB-C Tuner input, 256 IP (100/1000M)input
Stream output: IP (8*MPTS) output over UDP and RTP, 100/1000 Base-T
Support 8*Mux-SCR-DVBC output/ 8*Mux-DVBT output
Support 8*MPTS IP over UDP and RTP output
Outline

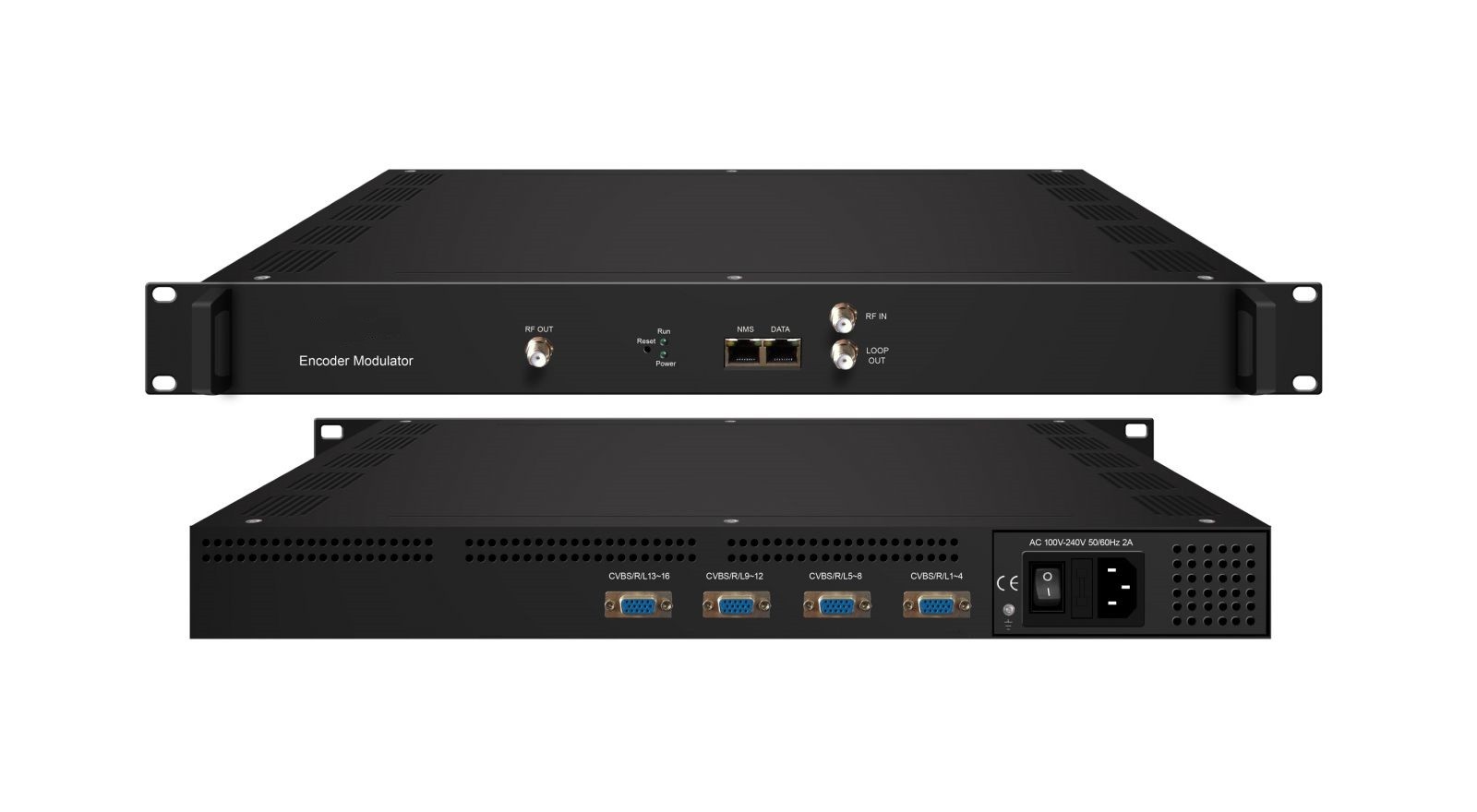

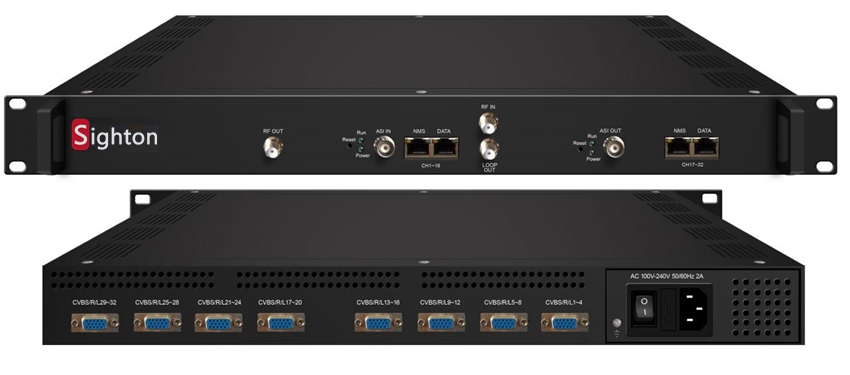

STHM-3378 h.264 av to rf streaming modulator integrates encoding, multiplexing and modulating functions in one standard 1U case. Supporting 1 encoding modulating module and 1 encoding module, and both modules accept analog CVBS inputs. After multiplexing the 16 encoded TS (17~32 channels) to the encoding modulating module through 1 ASI port and 1 IP port with one MPTS, and then generating 8 MPTS output through the data port. The model also supports 1 DVB-C tuner input, 1 ASI and 256 IP input and 8 non-adjacent carriers output(DVB-T or DVB-C as you need) through RF output interface and data port output.
In addition to encoding modulation multi-functions, it has multiplexing and scrambler functions with CAS to encrypt programs for charge providing the most multi-functions for broadcast in the global market.
Up to 32 AV inputs, a 3-year warranty, and free tech support before the sale and after the sale, it helps anyone with any budget to create their own RF channel which can be viewed on thousands of televisions simultaneously at a very low price and exceptional quality.
The device is characterized by a high integrated level, high performance, and low cost. This is very adaptable to the newly generation DTV broadcasting system.
Features
* 16 CVBS input with MPEG4 AVC/H.264 Video encoding
* 1DVB-C Tuner input for re-Mux
* 256 IP input over UDP and RTP
* Support MPEG1 Layer II Audio encoding and support audio gain adjustment
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Support 8*Mux-SCR-DVBC output/ 8*Mux-DVBT output
* Support 8*MPTS IP over UDP and RTP output

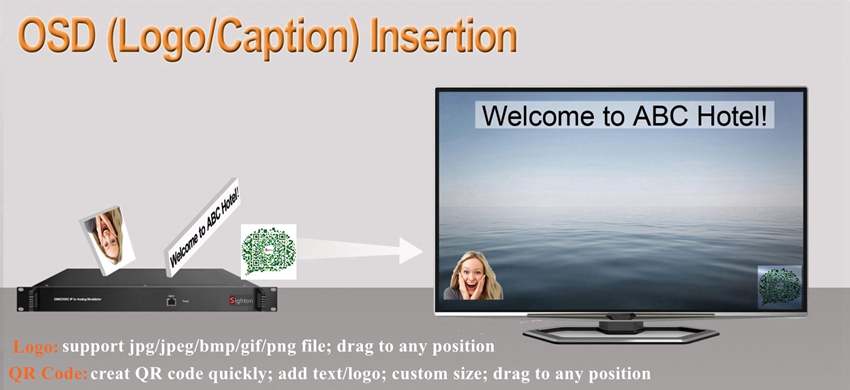

* Support Logo, Caption and QR Code insertion (Language Supported: 中文, English, العربية, ไทย, , for more languages please consult us…)
* Support IP Null PKT filter
* Real-time effective encoding output bit-rate monitoring
* Control via web management, and easy updates via web

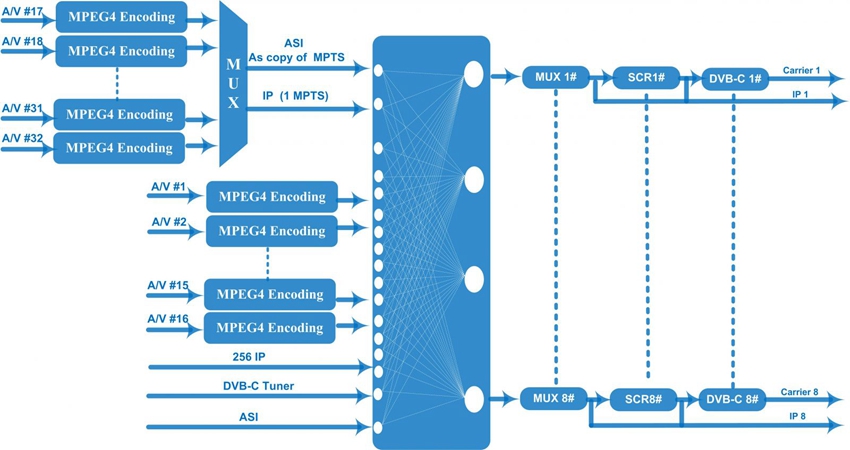

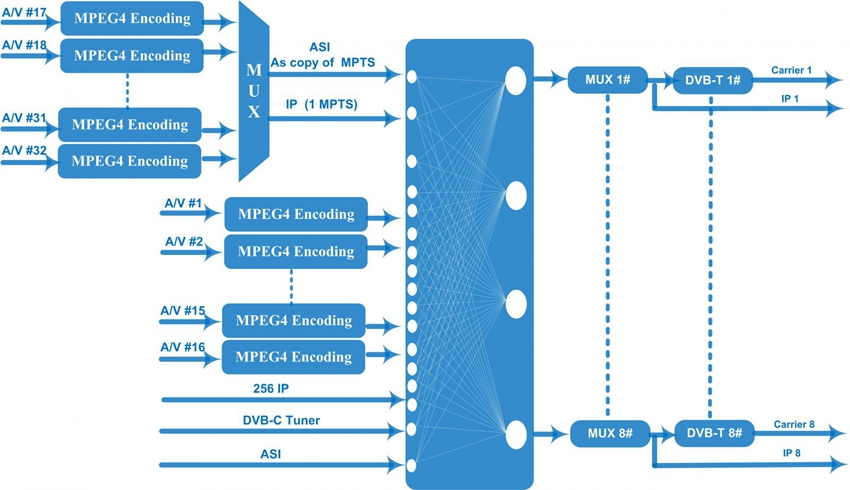

Principle Chart

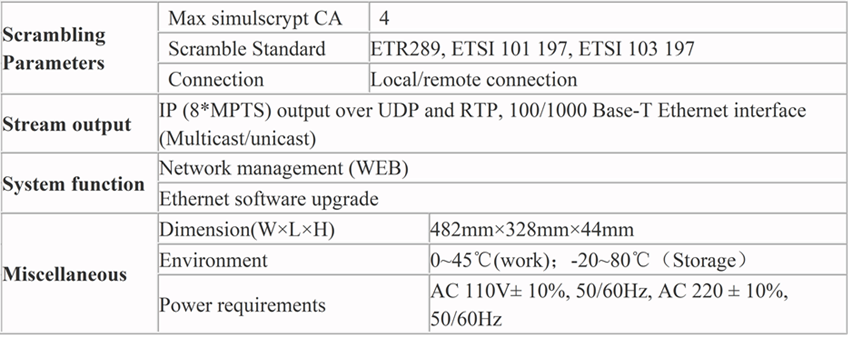

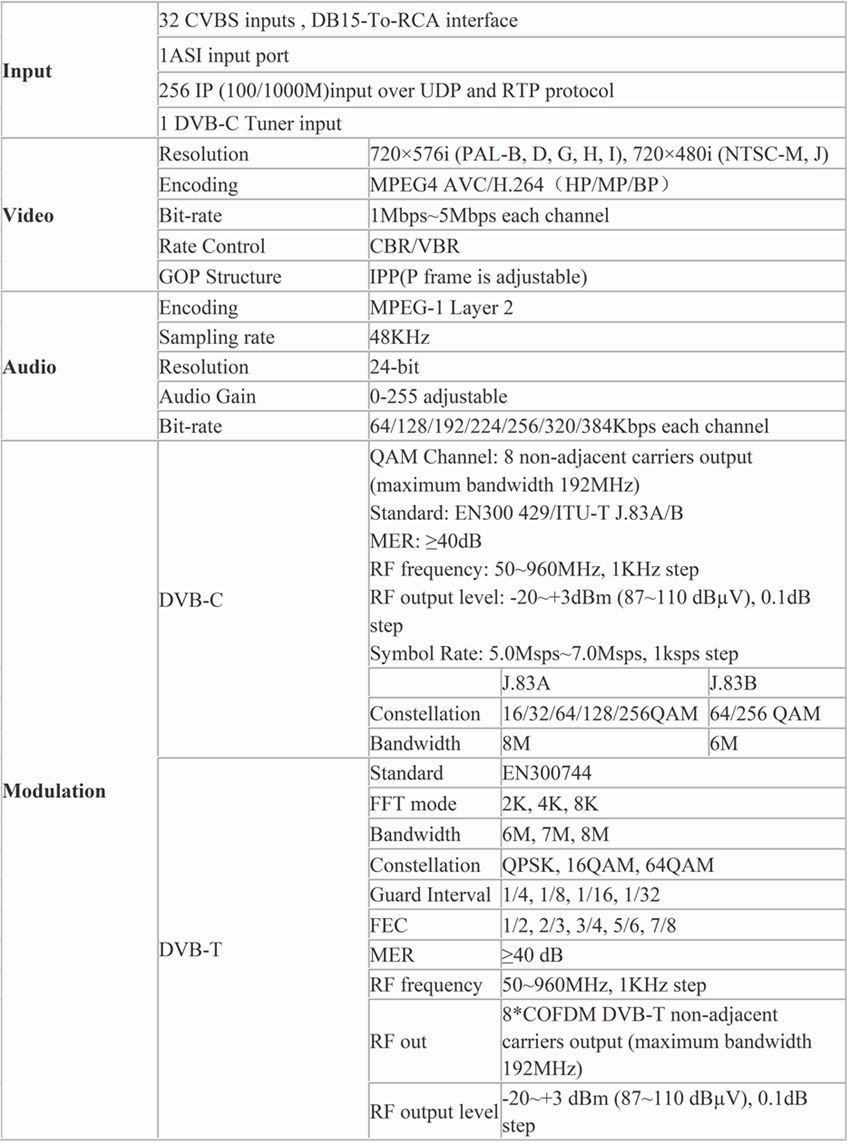

Technical Parameter
