Input:4 GE ports (max 64 IP input) Max 840Mbps for each GE input
Output: 64 non-adjacent or adjacent carriers' output
Outline
IP+ HDMI to analog Modulator support HD/SD IP signal source, 64 sets of digital to analog TV program output with HEVC/H.265 decoding. It is suitable for ordinary analog TV or digital TV with WEB management.

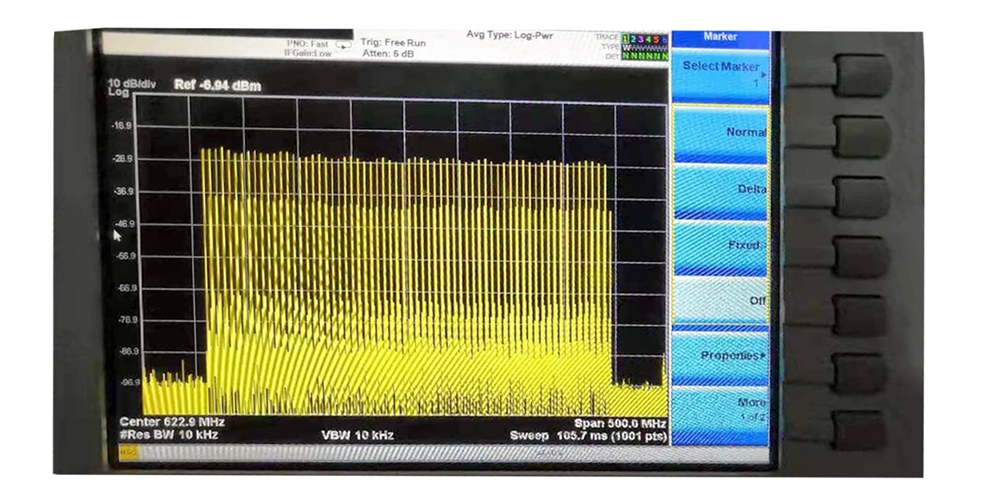

Super Specifications for RF output
Key Features

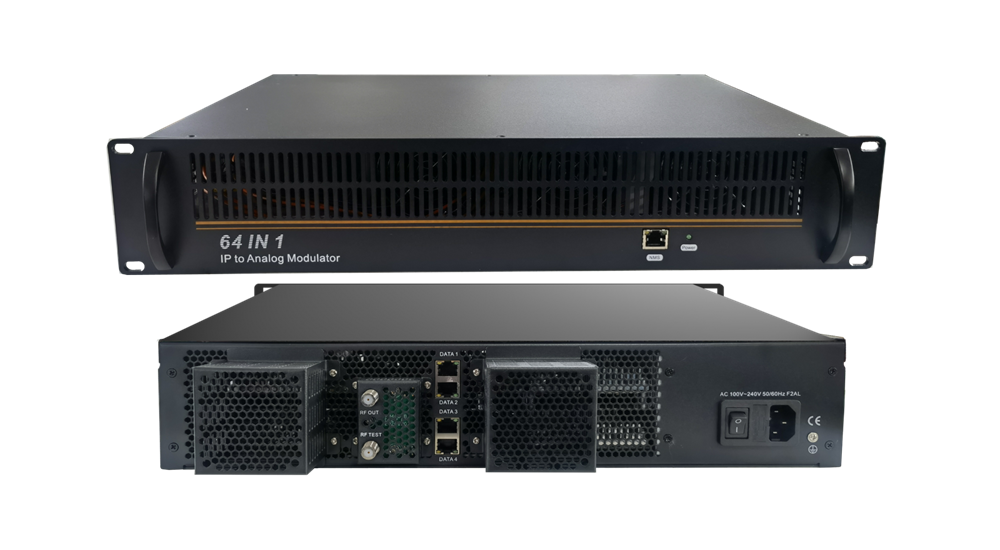

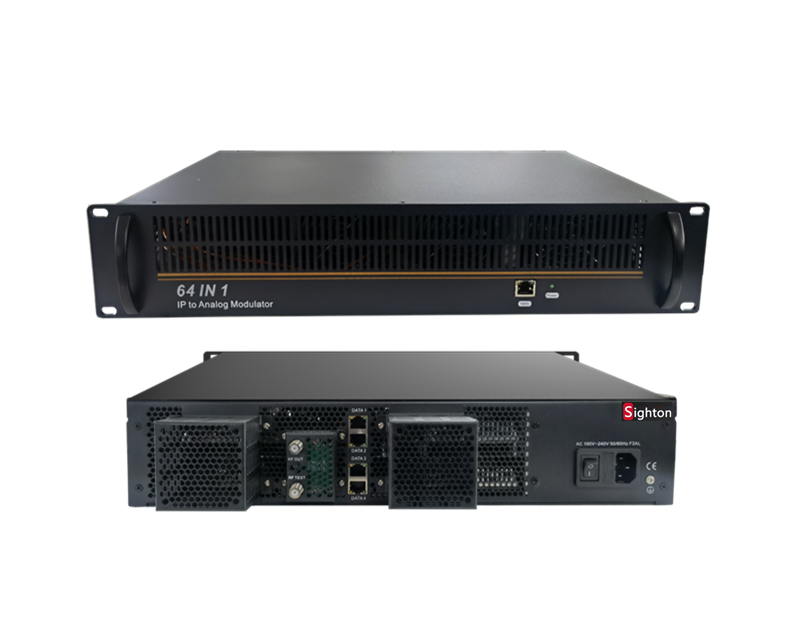

l 2U chassis, high density to save shipping cost

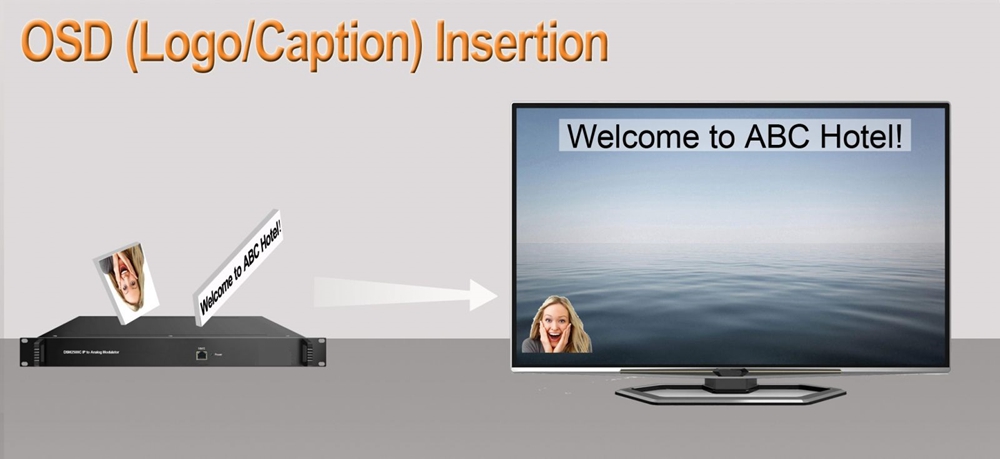

l Support OSD (Logo and Caption) insertion for each channel, easy operation
l Support CC/Subtitle/Teletext
l Support BISS De-scrambling (Under developing)
l Support program info modification, multiple audios select
l 4 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
l Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decoding
l Processing of up to 64 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 64 standard PAL or NTSC or SECAM TV programs

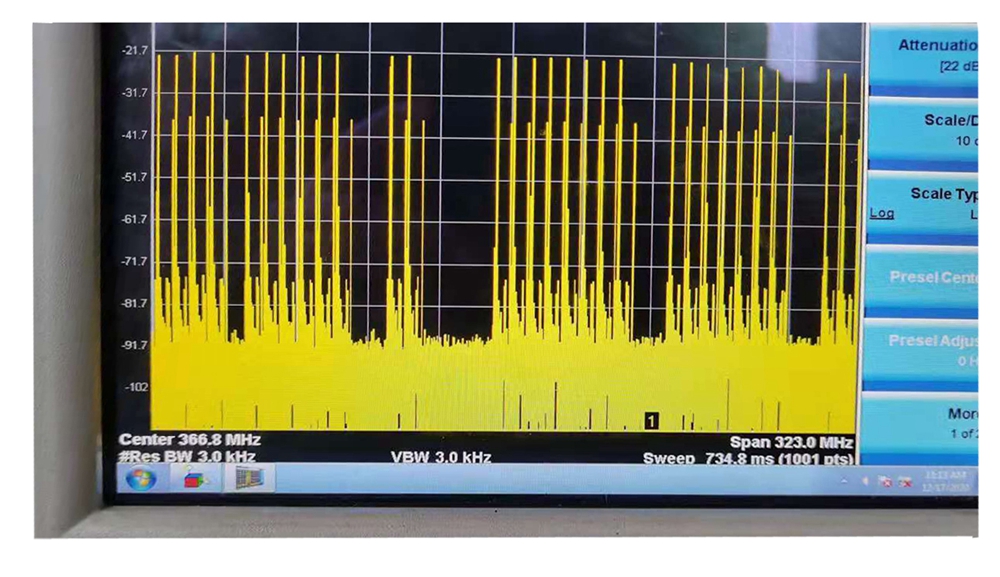

l 64 non-adjacent or adjacent carriers output, each 32 carriers within 400MHz
l Support Web-based Network management
Specifications
Order Guide
Options | Configuration |
Option 1 | 32 IP input, 32 analog channel outputs |
Option 2 | 4 HDMI+28 IP input, 32 analog channel outputs |
Option 3 | 8 HDMI+24 IP input, 32 analog channel outputs |
Option 4 | 64IP input, 64 analog channel outputs |
