Input: 2 DVB-S/S2 tuner input &IP/RF Mux
Output: DVB-T2 RF output &(1*MPTS over UDP)
Support: BISS descrambling

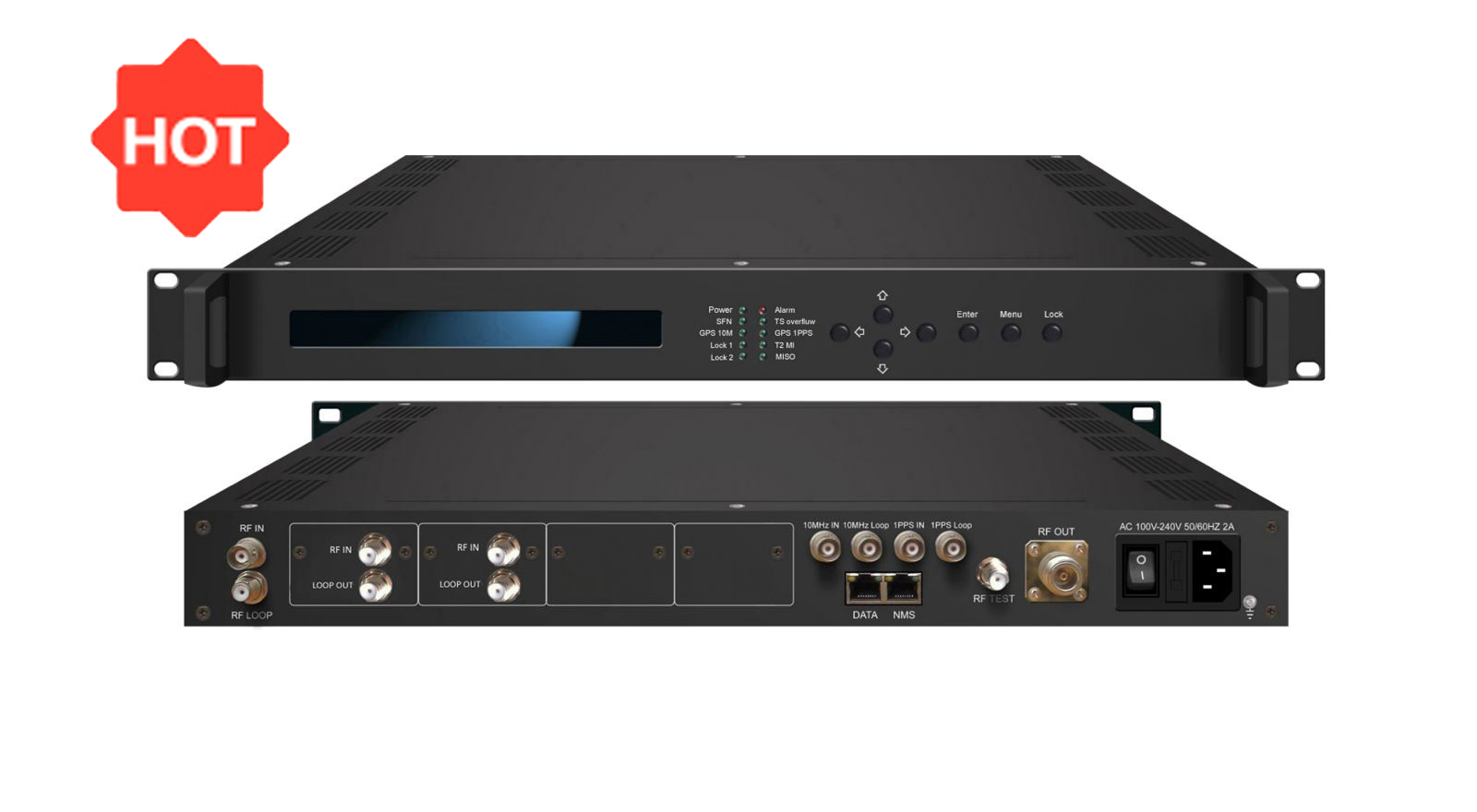

STMQ-3500 DVB-S2 to DVB-T2 digital modulatohr integrates demodulation, trans-mux and modulation in one case to convert signals into DVB-T2 RF output and IP output over UDP. The device is equipped with 2 DVB-S/S2 tuner inputs, one GPS 10MHz input port and one 1PPS input port. The output-modulated signals are to be received by TVs, STB and etc. This DVB-T2 rf modullator also simultaneously supports adaptive linear and nonlinear digital pre-distortion.
BISS function is also embedded to descramble programs from tuner input.
l Support 2*S/S2 Tuner input
l 10MHz input/loop out, 1PPS input/loop out
l DVB-T/(T) T RF out in one device, multi-booting
l IP (1*MPTS over UDP) mirror RF output
l Support MISO and SISO
l High-performance output: MER>43dB, shoulder level>56dB
l Supports non-linear and linear digital pre-distortion (DPD)
l Constant temperature crystal oscillator, as high as 0.1ppm stability
l Support LCD display and keyboard
l Support BISS descrambling
l Web-based Network management

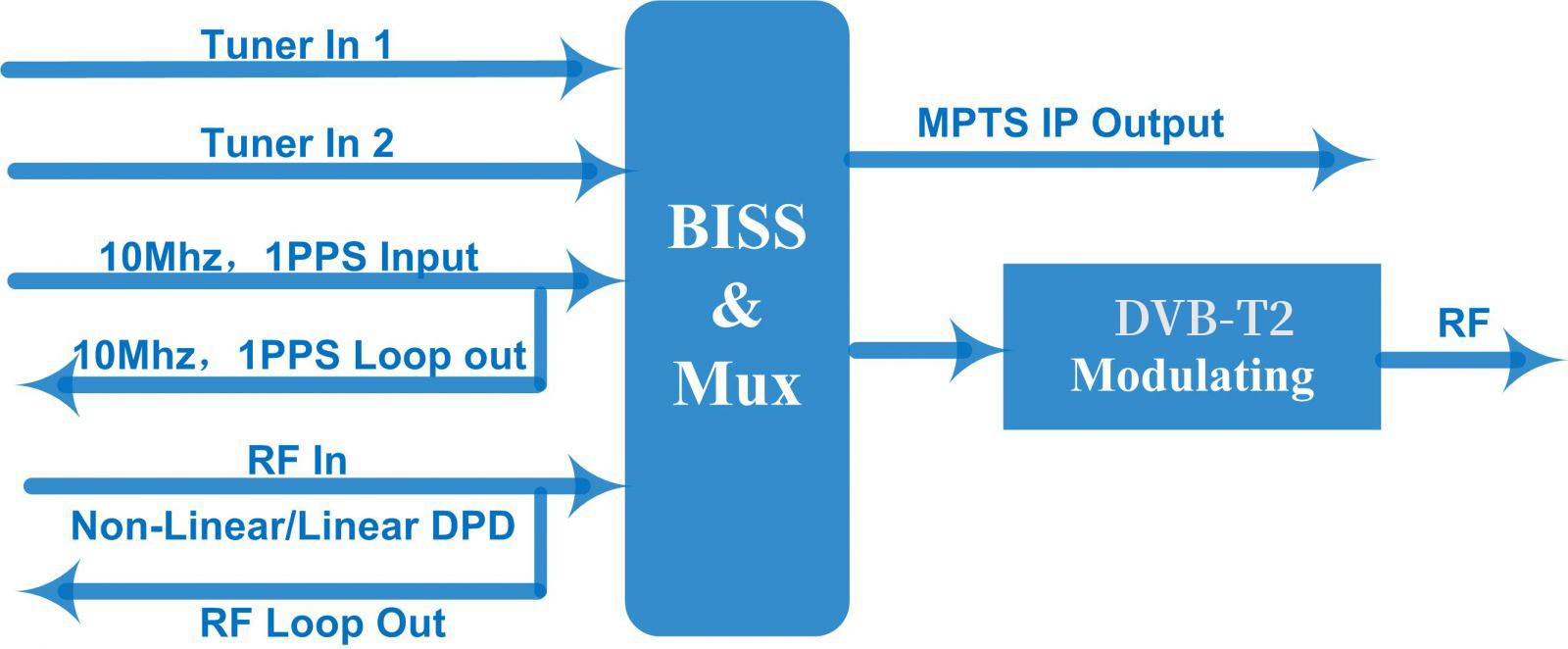

Principle Chart

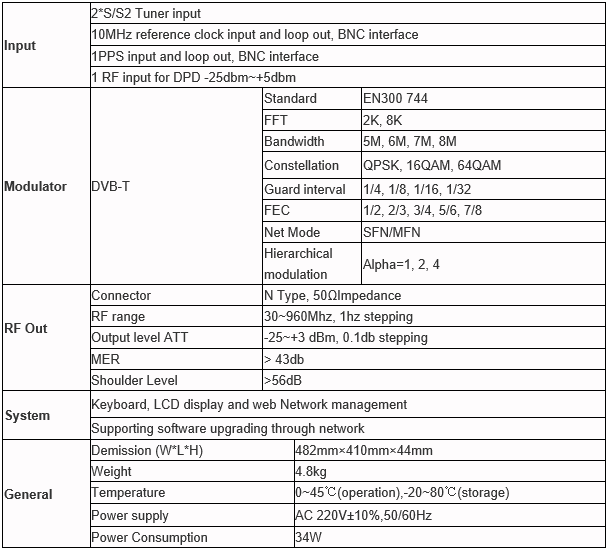

Technical Parameter

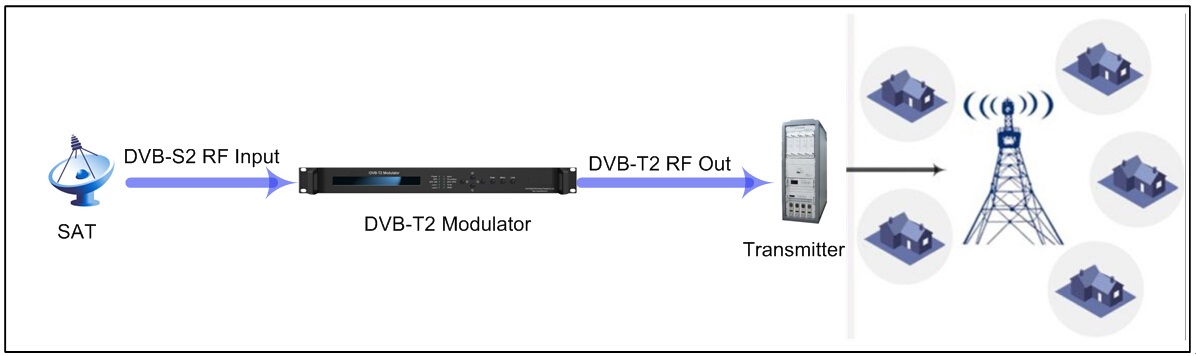

Connection

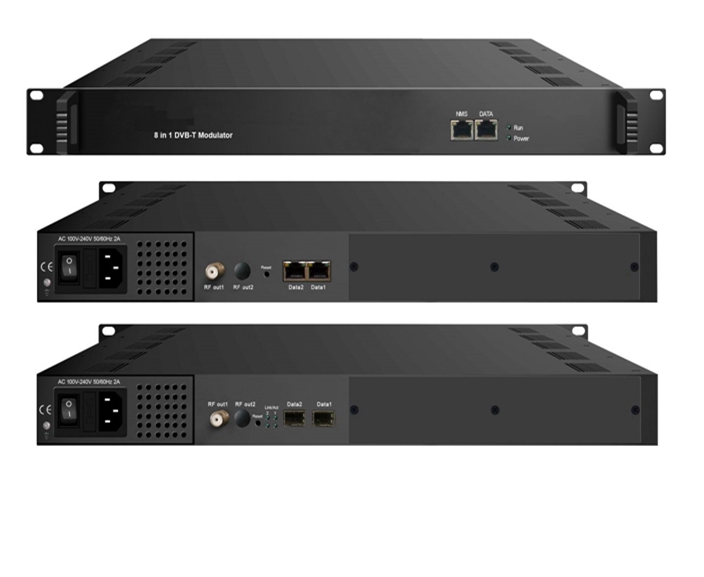

Devices-Recommend

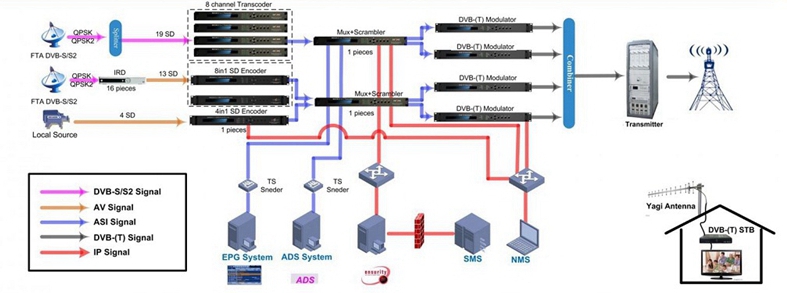

Build DVB-T2 Wireless Transmission System? | Or just need DVB-T Standard only |
|  |
